BIM Plus Series
The BIM Plus Series brings precision and elegance to fixed indoor LED displays. At just 42mm thin and 22.8 kg/㎡, its panels blend seamlessly with walls while cutting installation time and transportation costs. Available in multiple sizes, the series allows for staggered splicing across diverse environments such as retail stores, meeting rooms, and houses of worship.
This flexibility doesn’t stop at size. BIM Plus supports 90° rotation without color shift, curved splicing down to a 2.8 m radius, and mixed splicing with BIM MIN and BIM Plus-X models. Optional wireless connections streamline structure, reduce maintenance time, and minimize risk of disconnection. BIM Plus is where modern aesthetics meet practical engineering — adaptable, reliable, and designed for a wide range of creative applications.
Features
- Ultra-thin 42mm panels that blend seamlessly with walls
- Lightweight 17.5 lbs panels reduce installation and transport effort
- Multiple size options enable staggered splicing for creative layouts
- Supports 90° rotation without color distortion
- Curved splicing down to a 2.8 m minimum radius
- Mixed splicing with BIM MIN and BIM Plus-X for versatile designs
- Optional wireless connection simplifies maintenance and reduces disconnection risk
-
Triple-lock system ensures precise flatness for flawless display alignment
Ultra Thin & Light
42mm ultra-sleek panels blend with the wall perfectly to save installation time and 22.8kg/㎡ lightweight cabinet lowers more transportation costs.
More Sizes for Staggered Splicing
BIM Plus Series offers various sizes to allow staggered splicing in different scenes like stores, meeting rooms, churches, etc.
Perfect 90° Splicing
45° bevel is optional to splice L shapes and cubes to realize more creativity.
90° Rotation
As modules are wired center-symmetrically, BIM Plus Series supports 90° rotated assembly without color cast, providing higher flexibility.
Mixed Splicing,High Practicality
BIM Plus curved splicing（Minimum radius: 2.8m）
BIM Plus mixed splicing with BIM MIN

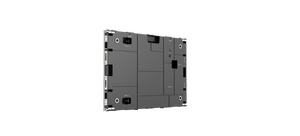

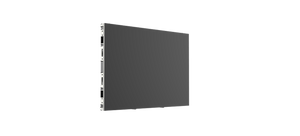

BIM Plus mixed splicing with BIM Plus-X
Wireless Connection(Optional)
BIM Plus Series simplifies the inner structure with a wireless connection for higher-efficiency maintenance and less disconnection risk.
Specification
| Model | BIM Plus 1.9 | BIM Plus 2.6 | BIM Plus 3.1 | BIM Plus 3.9 | BIM Plus 5.2 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 3.1 | 3.9 | 5.2 |
| Panel Size (mm) | 1000*250*42 / 750*250*42 / 500*250*42 | ||||
| Panel Resolution (Pixel) | 512*128 / 384*128 / 256*128 | 384*96 / 288*96 / 192*96 | 320*80 / 240*80 / 160*80 | 256*64 / 192*64 / 128*64 | 192*48 / 144*48 / 96*48 |
| Panel Weight (Kg/pc) | 5.7 / 4.2 / 3.1 | ||||
| Brightness (nits) | 800 | 800 / 3500 | 900 / 3500 | 900 | 1000 / 3500 |
| Panel Material | Aluminum | ||||
| Serviceability | Front | ||||
