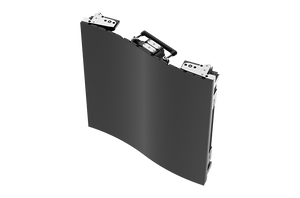

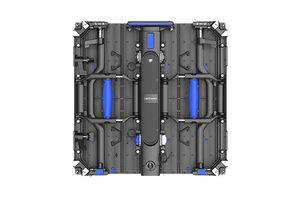

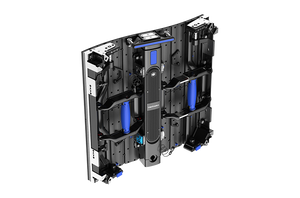

E-Swan Series
The E-Swan Series is built for creativity in motion. With panels that bend up to 45° inward or outward across nine adjustable scales, it opens the door to curved designs that traditional displays could never handle. Waves, corners, cylinders — the possibilities aren’t just expanded, they’re redefined.
Engineered for speed and simplicity, its slim, lightweight panels make installation fast, while full rear maintenance keeps servicing hassle-free. Exceptional visual performance, driven by a 7680Hz refresh rate and 16-bit grayscale, ensures lifelike clarity whether viewed directly or through a camera lens. From immersive live events to XR production studios, the E-Swan Series transforms every space into an unforgettable visual experience.
Ultimate Flexible Curved Panel

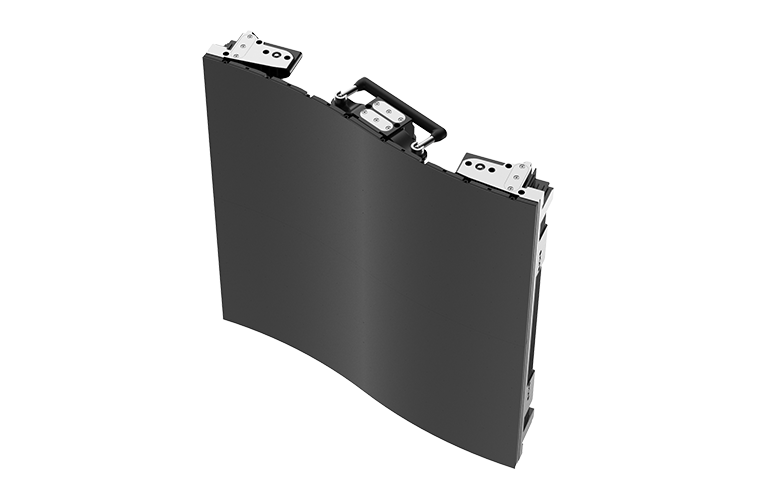

9 adjustable scales grant each panel to be bent up to 45° inward and outward.
Inventive Smooth Curved Splicing Solution
Support curved shapes such as wave, right-angle corner, cylinder
Mixed Splicing, More Possibilities
Mixed splicing with other rental displays for more creativity
Quick Installation, Easy Maintenance
Ultra-slim & light die-casting aluminum panels with each weighing 8 kg, 73mm thinness

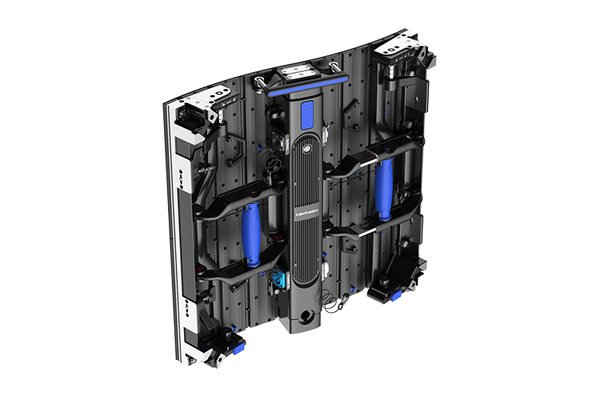

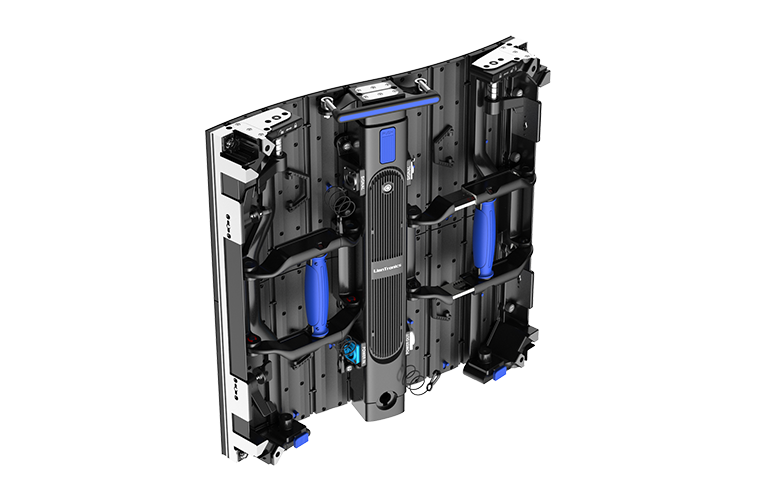

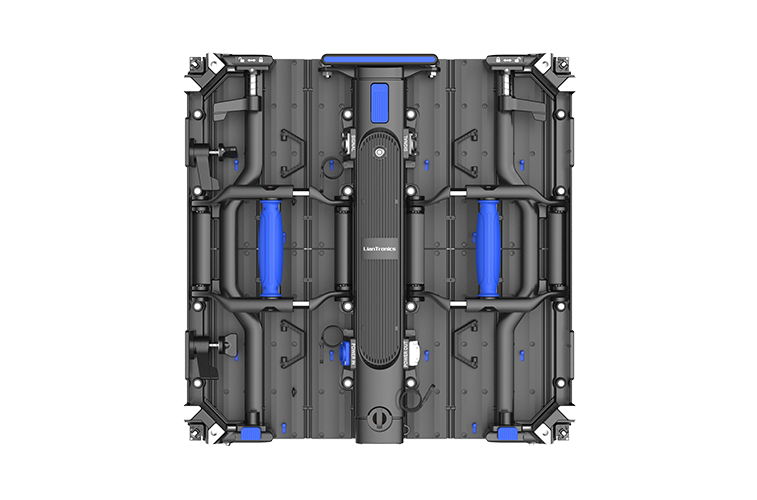

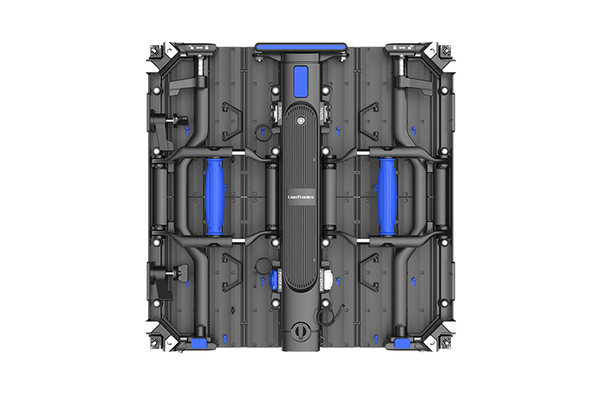

Modules and power boxes support full rear maintenance
Flexible Installation System
Support flexible stacking and hanging system with up to 10 meters high
Exceptional Visual Effects
7680Hz refresh rate and 16bit grayscale delivers extraordinary display effect
Perfect in-camera performance facilitates more application like XR stages and virtual production studios
Specification
| Model | ES1.9 | ES2.6 | ES3.9 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 3.9 |
| Panel Size W*H*D (mm) | 500*500*73 | 500*500*73 | 500*500*73 |
| Panel Resolution W*H | 256*256 | 192*192 | 128*128 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Weight (Kg/pc) | 8 | 8 | 8 |
| Brightness (nits) | 900-1000 | 900-1500 | 900-1200 |
| Serviceability | Rear | Rear | Rear |
